Thermal Conductivity Enhancement of Biodegradable Thermoplastic Blends
Increasingly, work is being devoted to replacing heavy and expensive metallic heat sinks with lower cost, lighter organic-based heat sinks. One way in which to do this is to mix a polymer material with some thermally conductive additive to improve its thermal conductivity. Such a material is referred to as a thermally-conductive polymer composite(TCPC) material. The field of TCPC research is an emerging and highly competitive one – however, historically, such materials have historically possessed very high percolation thresholds– the percolation threshold being the point at which an additive in such a mixture begins to have an appreciable and scalable effect upon the thermal conductivity of the mixture, before which there is little, if any appreciable improvement in thermal conductivity upon successive additions of additive (Figure 1).

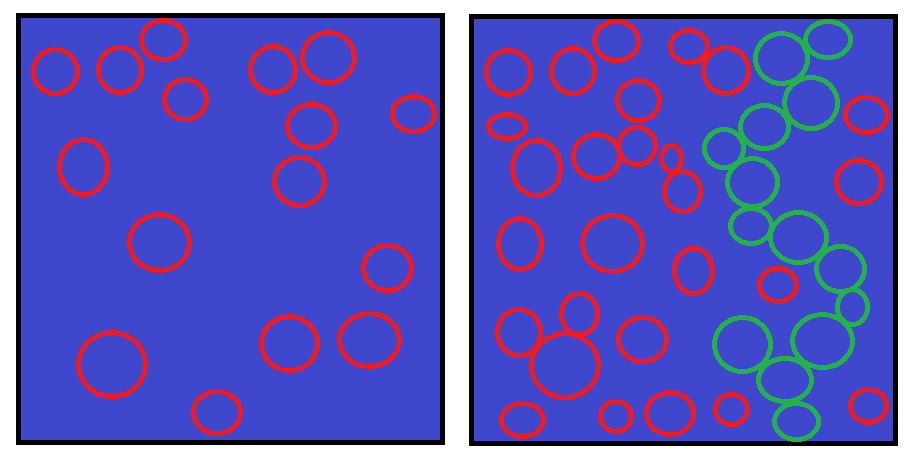

Figure 1. Left: Below the percolation threshold, no pathway exists for effective heat conduction.
Right: Above the percolation threshold, a pathway for conduction exists
As a result of the high percolation threshold, very high loadings of additives (30 wt% or more) have been needed to achieve the desired thermal conductivity. The issue with such a high loading is that it sacrifices the mechanical properties, and sometimes the electrical properties, of the composite for the thermal conductivity, and it makes the composite denser, resulting in a heavier consumer good. Research in recent years has therefore focused on ways of reducing the required additive loading.
Scientists from the Chinese Academy of Forestryand the Chinese Academy of Sciencesrecently published workin the Journal of Composites Science and Technologydetailing thermal conductivity improvement of a polylactic acid(PLA)/polycaprolactone (PCL) blend by addition of graphene, a type of elemental carbon one layer thick with an extremely high thermal conductivity. This work is unique, as the additive doping requirement was substantially reduced by trapping the graphene material at the interface of the polymer blend.

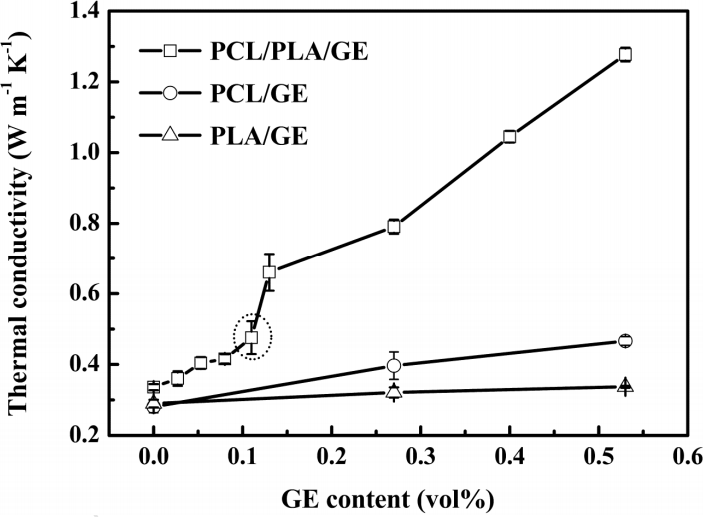

Figure 2. Thermal conductivity of PLA/GE, PCL/GE, and PCL/PLA/GE composite materials as a function of GE loading.
A key finding of their work is summarized in Figure 1. With a C-Therm TCi Thermal Conductivity Analyzer, Huang et al were able to study the effect of graphite content on the various polymer blends. The graphene loading improves the thermal conductivity of the PLA and PCL, but only marginally. However, once it becomes trapped at the interface of the polymer blend, the thermal conductivity of the material substantially improves, resulting in a four-fold improvement of the thermal conductivity of the material with merely a 0.5 volume % doping of graphene into the material. Remarkably, the percolation threshold of the PCL/PLA/GE blend (circled) was 0.11 vol%, representing the lowest percolation threshold for TCPC yet discovered.
